  • Features
  • COMPACT & ELEGANT DESIGNS
  • SHORT CIRCUIT & OVERLOAD PROTECTED
  • COMPLY ALL INTERNATIONAL SAFETY STANDARDS
  • FLEXIBLE DESIGNS FOR WIDE RANGE OF POWER OUTPUTS



Description

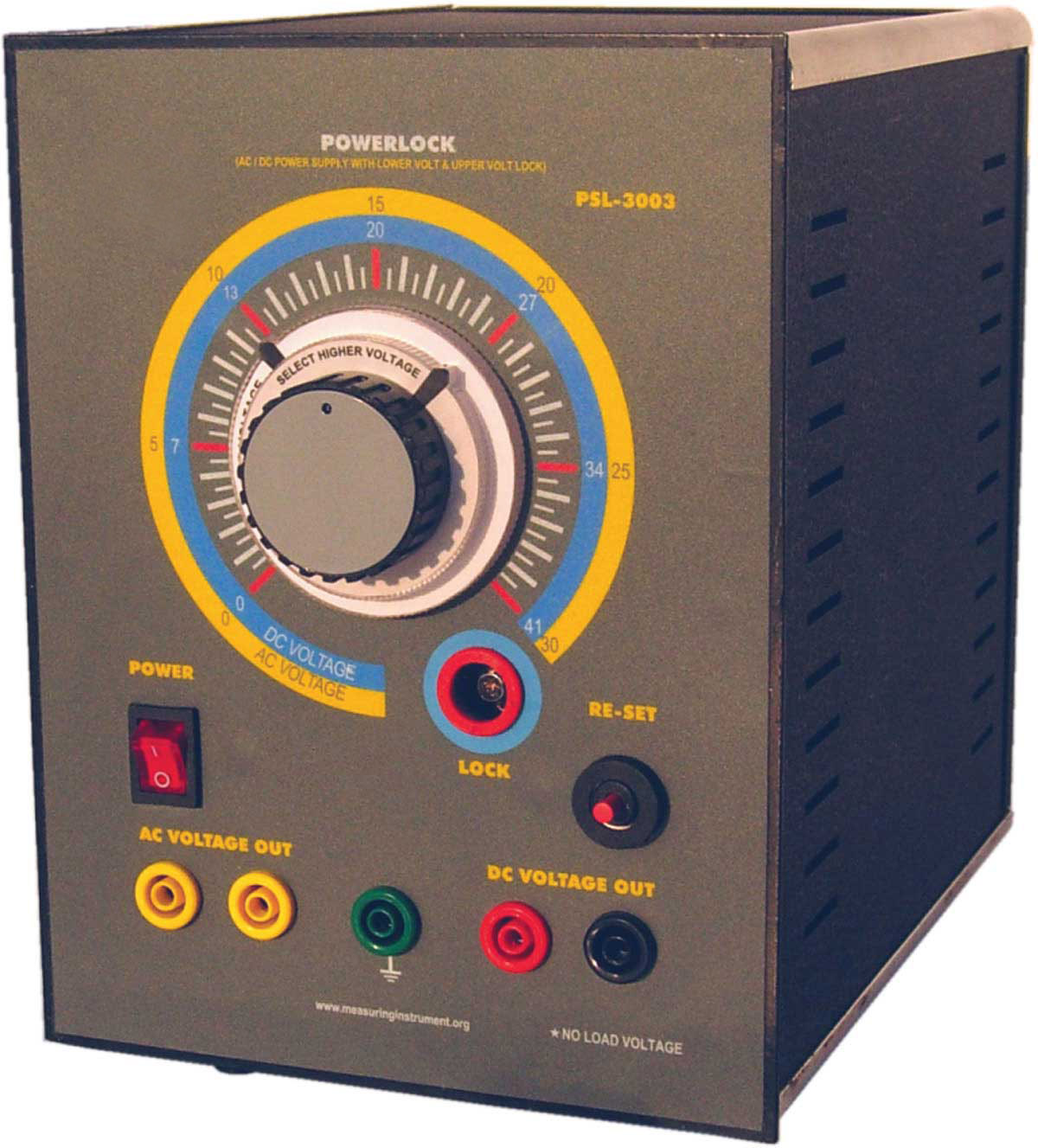

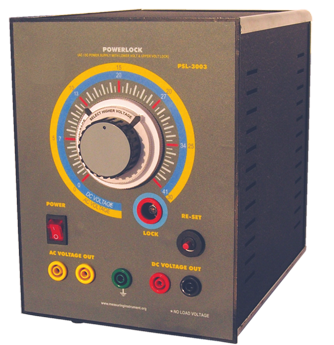

A Power Supply with Dual Lock for restricting students to manipulate the experiments & projects. It allows to lock a desired voltage or span of voltages.
A key is provided to lock or un-lock the power supply and enable set and lock the desired voltage or voltages. Dual scale & dial is also provided for reading of AC & DC voltages.
Power lock assures 100% safety to the experiments and projects. Safety at its maximum is provided by external fuse, re-settable overload/short circuit cut-off, along with automatic thermal protection for transformer and shrouded sockets on front panel for user’s safety.Power Locks are available from a wide range of voltages and current outputs up to 800 watts.

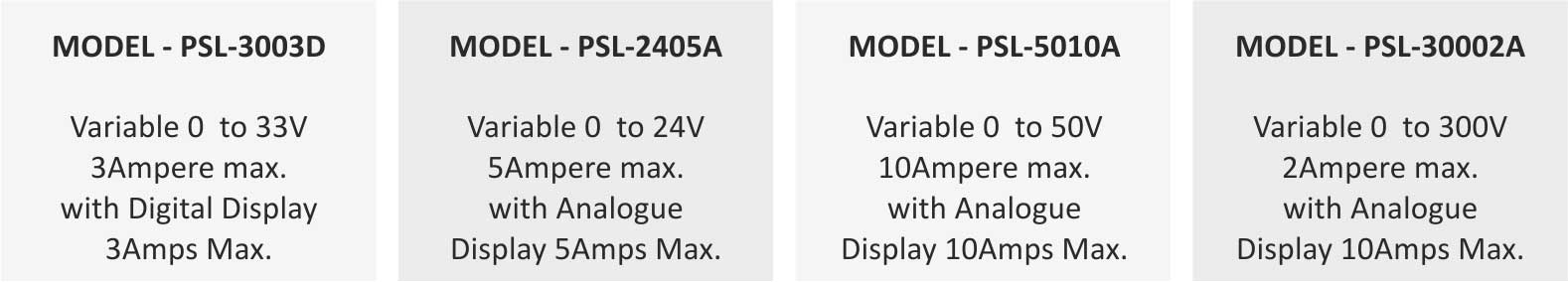

STANDARD AVAILABLE MODELS



Over Load & Short Circuit Protection is provided to all Power supplies with re-settable Switch & (Automatic Thermal Switch Optional)
Input voltage : 230VAC±10% Single Phase 50Hz (110VAC optional) All variable models are available with Analogue / Digital readouts
