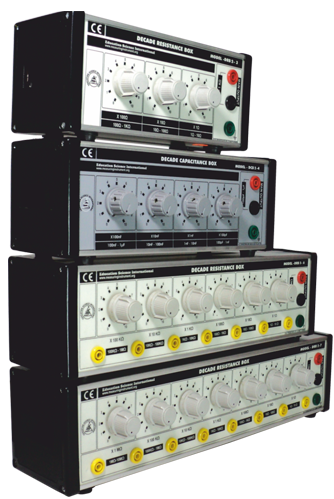

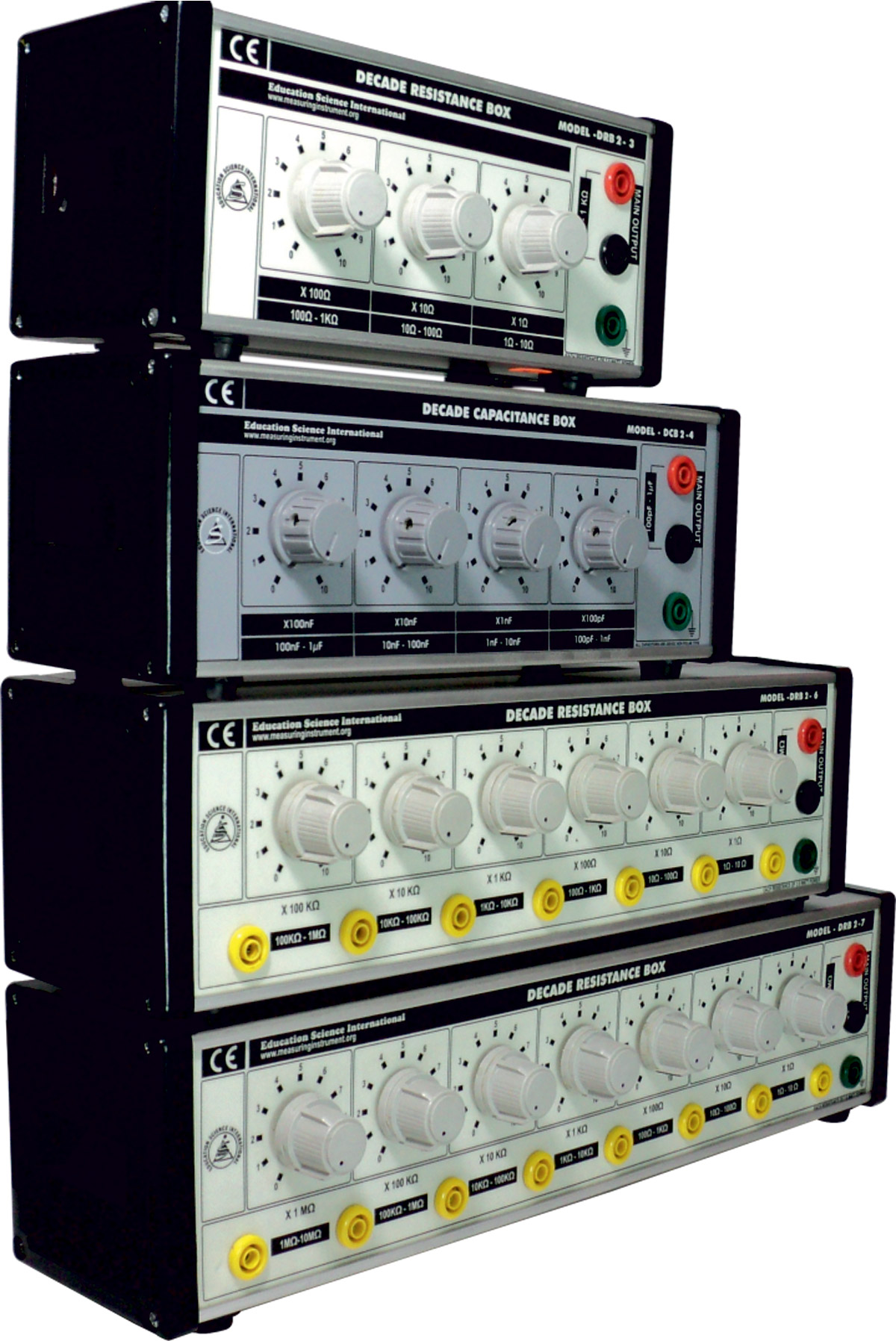

DECADE CAPACITANCE BOXES

Back To Product

Loading...
Mouseover on the image for a larger view.
  • Features
  • Direct read – out
  • Output on safety sockets
  • Moulded side covers with embossed handles
  • Membrane panel
  • Compact Design
  • Tolerance available up to 1%
  • Bi-polar Capacitors available up to 600 Volts

Applications

Professional series Decade capacitance boxes are specially designed to use in education institutes, testing laboratories and electronic research and development organizations for testing and calibration of electronic circuits. It also use as a substitute capacitor for a testing circuits to teach phenomena of capacitance and it's applications in different circuits and experiments.

Description

Capacitors of professional grade enclosed in metal cabinet or a specially designed aluminium extruded body with multi-color printed polycarbonate membrane on front panel. Capacitance value can be directly read from the position of control KNOBS. Capacitors of polystyrene film wound within 1% tolerance, thereby ensuring high accuracy and stability of working. These capacitors gives very high insulation resistance therefore they have high and constant characteristics for several hours together.
Use of professional grade rotary switches of wiping & self cleaning contacts with very low contact resistance and high insulation and having a minimum life span of 25000 cycles on full load. Specially designed quality hardware components for easy user interface. Highly professional testing and measuring instruments are used to calibrate these Decade boxes. Moreover, being reasonably priced, they could be substituted for much higher priced instruments.
