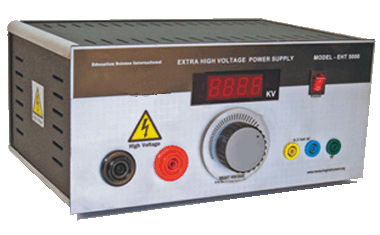

EXTRA HIGH TENSION POWER SUPPLY

Back To Product

Loading...
Mouseover on the image for a larger view.
  • Features
  • 0 to 5000VDC / 6000VDC output with Current limit & Display
  • Short Circuit Protected
  • Shrouded Output terminals for User Safety
  • 3mA Load Current
  • Output by Digital / Analogue readouts

Description

0-5KV/ 0-6KVDC Power Supplies are Extra High Tension Power Supplies used in educational institutions for carrying out high voltage experiments for students. It also provides two isolated AC supply of 6Volt and 12Volt. A Digital/ Analogue meter is provided to monitor the output Voltage. Specially designed shrouded socket are provided for EHT outputs.

Technical Specifications



  1. MODEL 5000V3A : EHT Voltage 5000Volt
    Load Current : 3mA/2mA continuous
    MODEL 6000V3A : EHT Voltage 6000Volt
    Load Current : 3mA/2mA continuous
    AC Filament Supply : 6V / 12V AC with 6W output
    (6V/1A /12V/0.5A)
    VOLTAGE DISPLAY : 3½ Digit Digital Meter
    Analogue (Optional)
    Mains Voltage : 230VAC±10% 50Hz, Single Phase(110VAC optional)
